Thông số kỹ thuật
Model | CS-T1C-A0-BG |
Điều kiện hoạt động | Nhiệt độ -10 °C đến 55 °C Độ ẩm 95% trở xuống (không ngưng tụ) |
Kích thước | Thân chính: Φ 43,5 x 32,0 mm (1,7 x 1,3 inch) Chân đế: Φ 29,0 x 9,5 mm (1,1 x 0,4 inch) |
Kích cỡ bao bì | 92 x 52 x 93 mm |
Trọng lượng | 92 g (3,2 oz) kèm bao bì |
Loại phát hiện | Hồng ngoại thụ động (Passive infrared, PIR) |
Khoảng cách phát hiện | Lên đến 7 m |

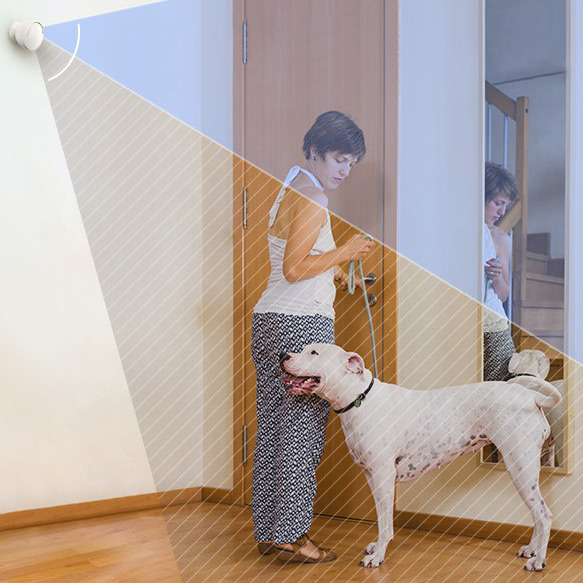

Góc phát hiện | 90° ngang, 90° dọc |
Chiều cao lắp đặt được đề xuất | 1,8 đến 2,5 m để lắp đặt theo cách gắn trên tường |
Phát hiện dấu vết vật nuôi | Yêu cầu sử dụng tấm chắn vật nuôi và chiều cao lắp đặt cao hơn vật nuôi từ 50 cm trở lên |
Nhắc nhở pin yếu | Hỗ trợ |
Báo động chống phá hoại | Hỗ trợ |

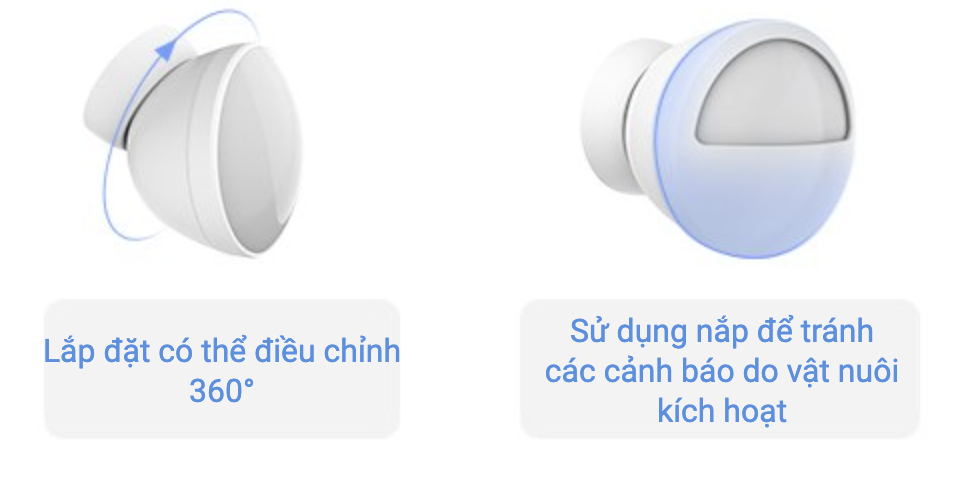

Phương pháp lắp đặt | Dính trở lại với các bộ phận từ tính. Hỗ trợ lắp đặt xoay ngược trên tường và trần |
Loại pin | Pin cúc áo CR2450 |
Tuổi thọ pin | Chế độ hiệu suất cao: Lên đến 1 năm Chế độ tiết kiệm năng lượng: Lên đến 2 năm |
Giao thức | ZigBee 3.0 |
Khoảng cách giao tiếp | < 200 m (Đã thử nghiệm trong môi trường mở) |
Chi tiết các bộ phận |
|
Chứng nhận | CE / FCC / RoHS / REACH / WEEE / UKCA |
